NZ3308 AlTiSiN Coated Insert External Turning Carbon Stainless Steel
NZ3308 Material & Process Overview
The NZ3308 Universal Series adopts a nano-composite coating process, with the coating component being aluminum-titanium-silicon-nitride (AlTiSiN), suitable for machining universal steel parts and stainless steel.
Key Coating Properties:
Coating Thickness:2.1 μm
Coating Hardness:37 GPa
Products Categories
Get A Free Quote
Performance Advantages
- Optimized Edge Security: Micro-fracture resistant edge preparation
- Thermal Stability: Maintains hardness up to 800°C
- Multi-layer Architecture: Enhanced adhesion & crack resistance
NZ3308 External Turning Insert Data Sheet
| Model | Picture | Model | Picture |

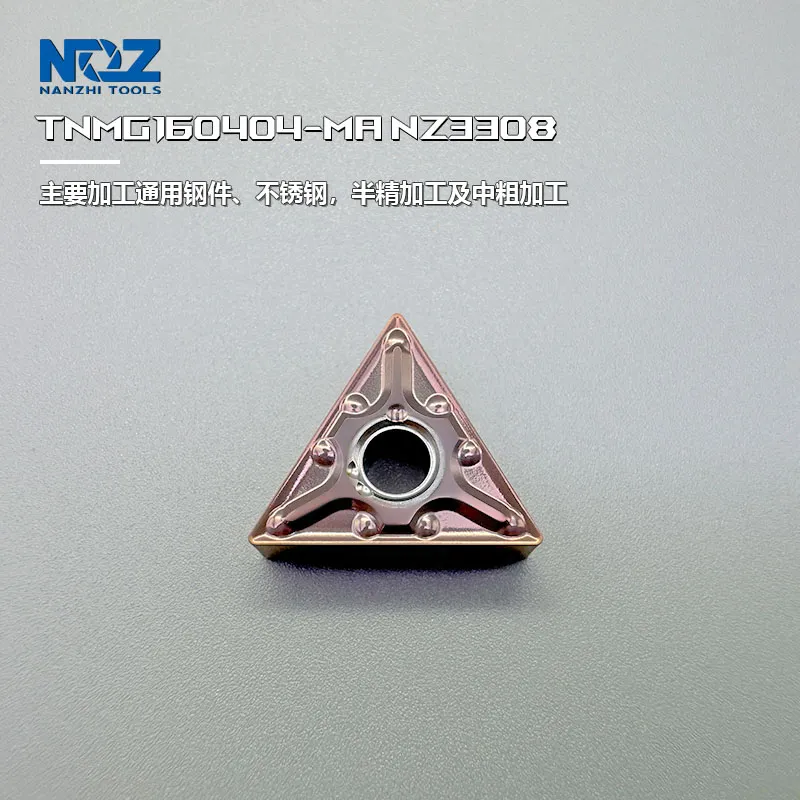

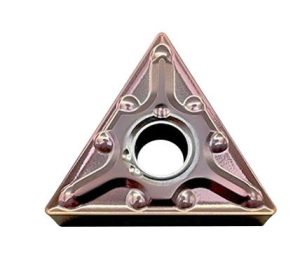

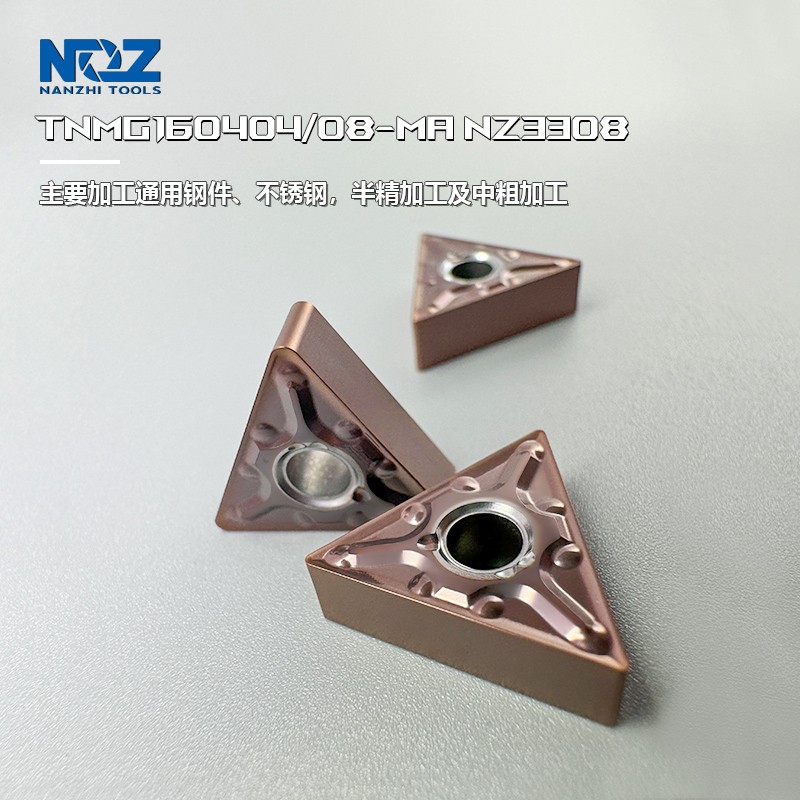

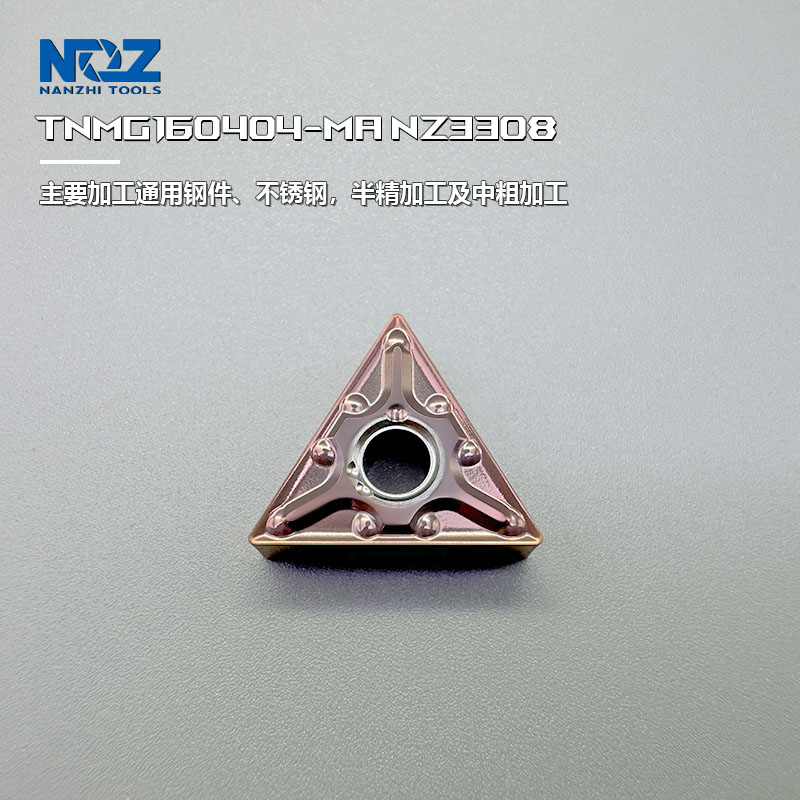

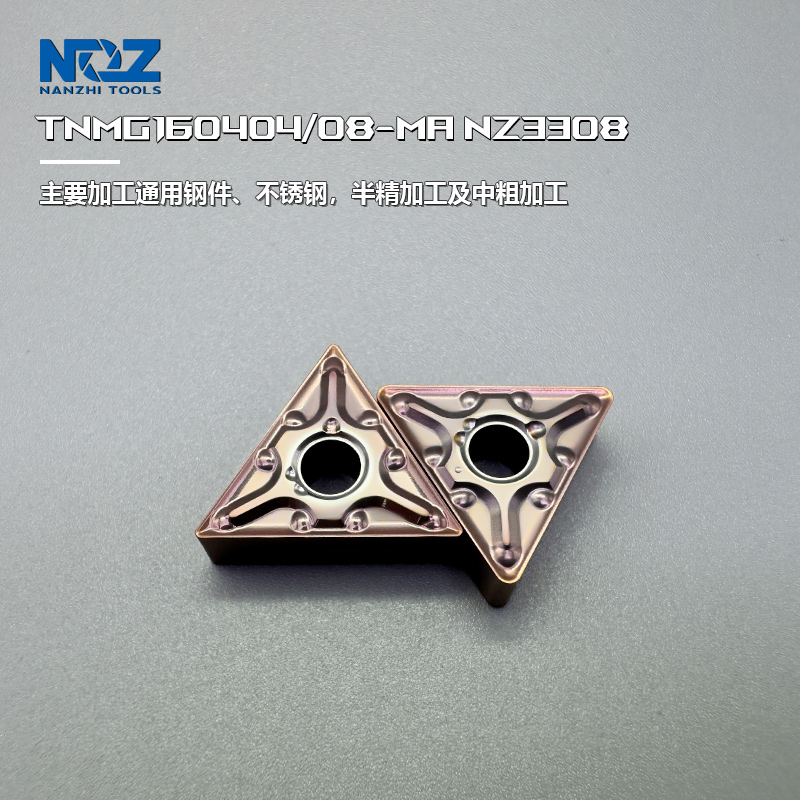

| TNMG160404/08/-MA |  |

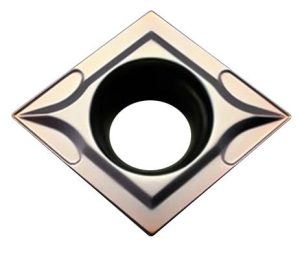

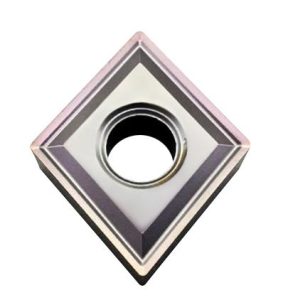

CCMT060202/04/08-MA CCMT09T302/04/08-MA CCMT120404/08-MA |
 |

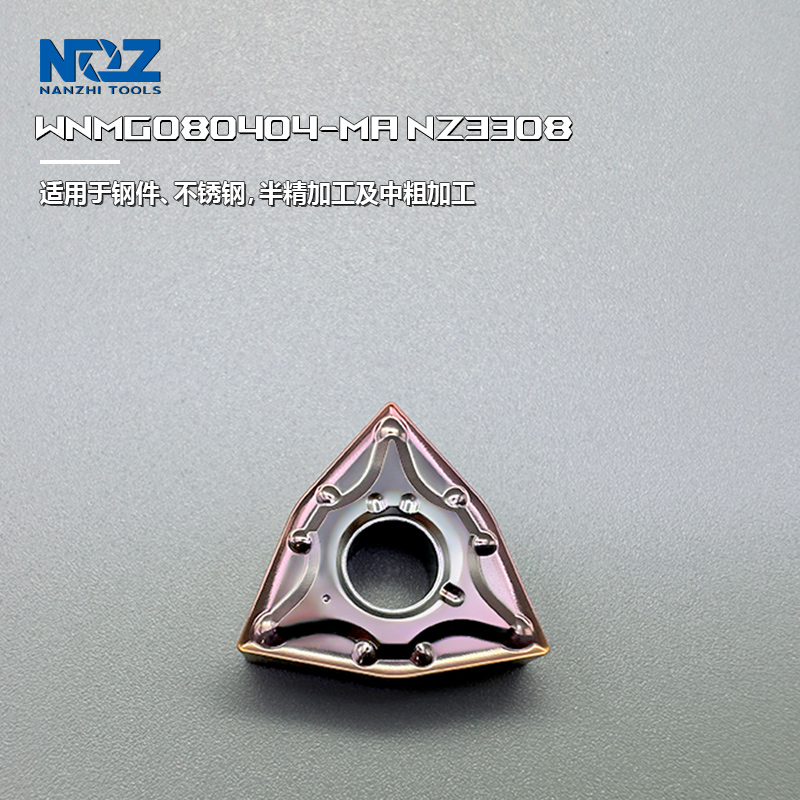

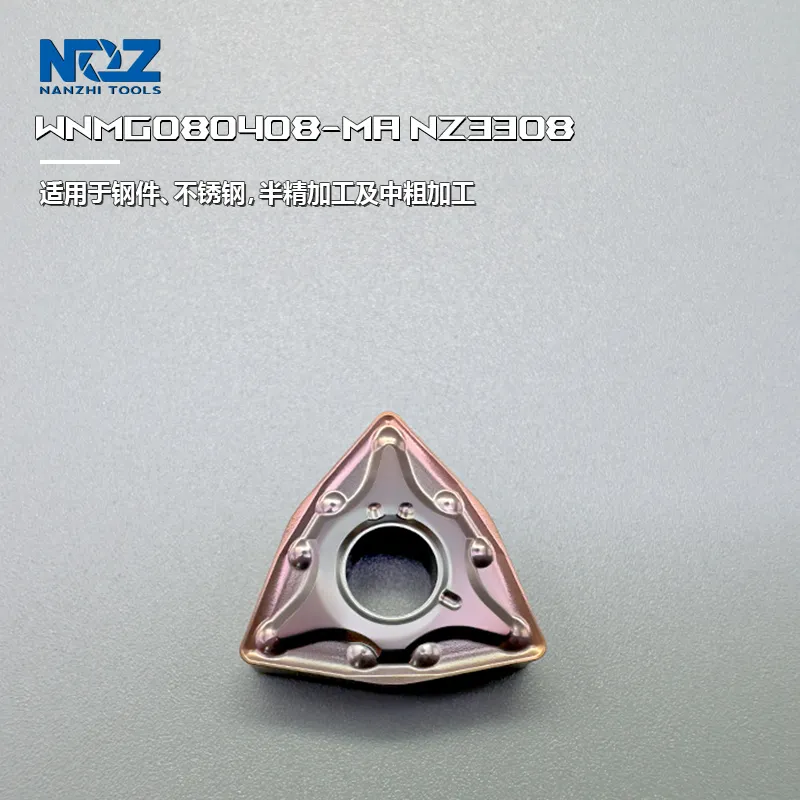

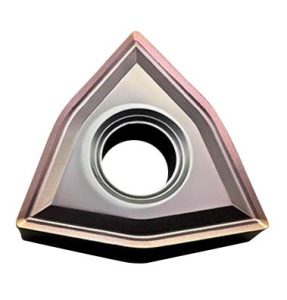

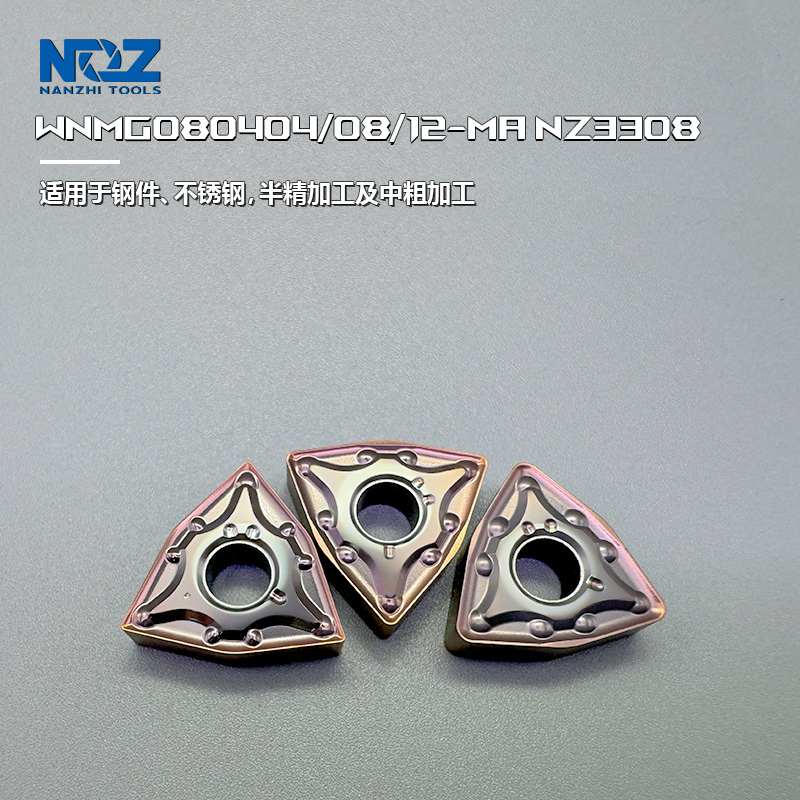

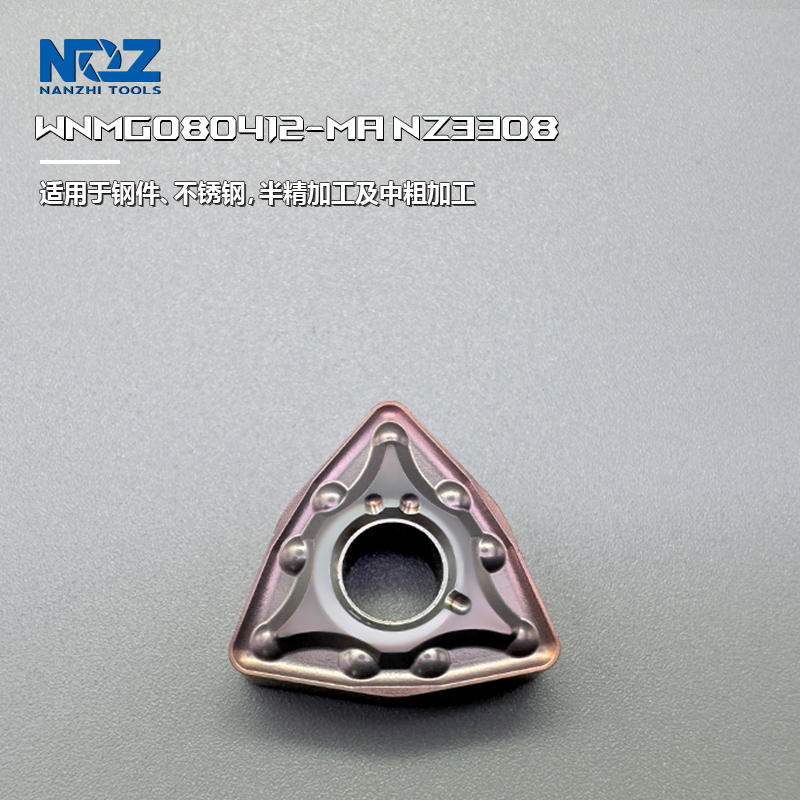

| WNMG080404/08/12-MA |  |

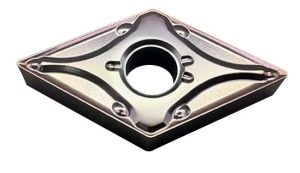

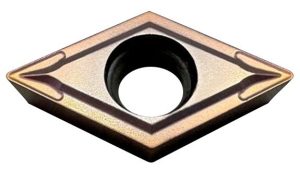

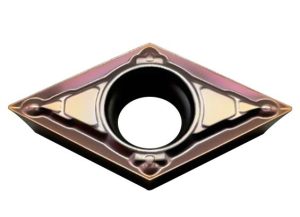

DCMT070208-MA DCMT11T304/08-MA |
 |

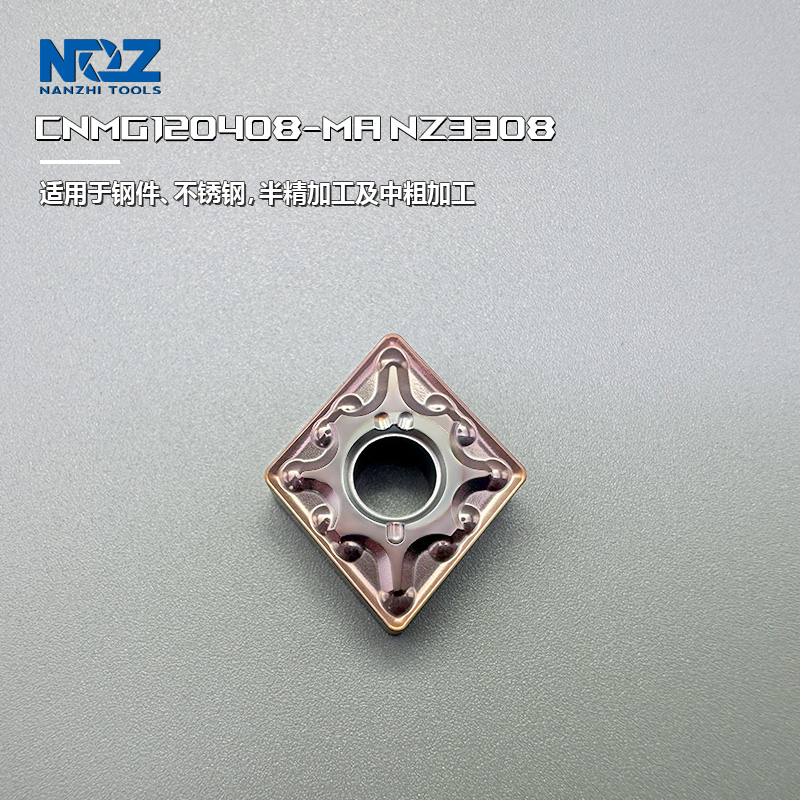

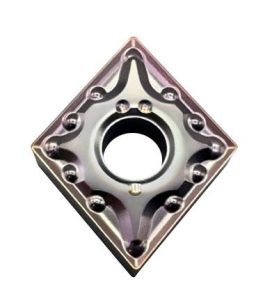

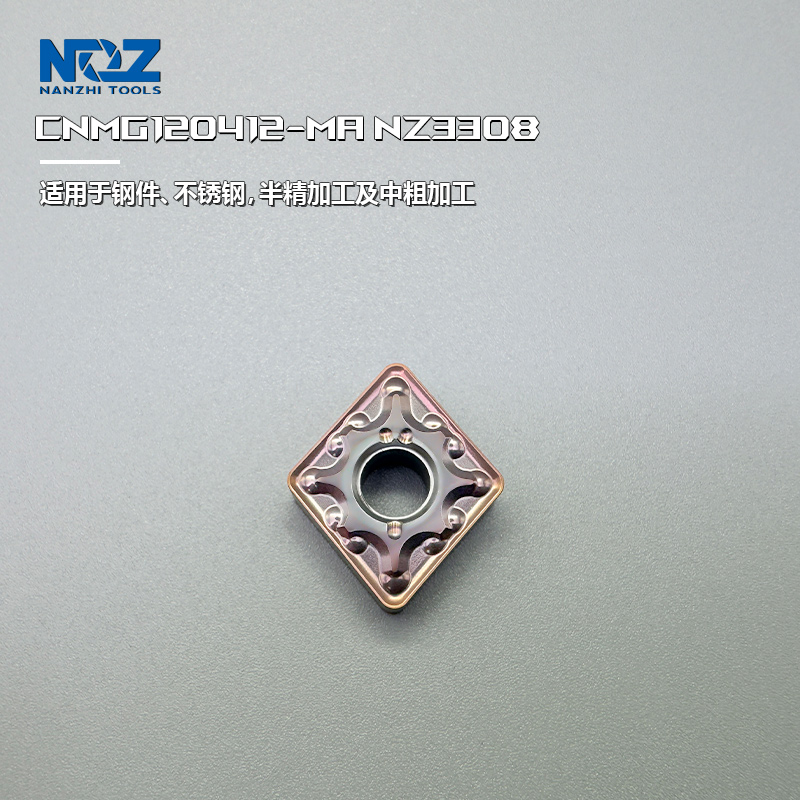

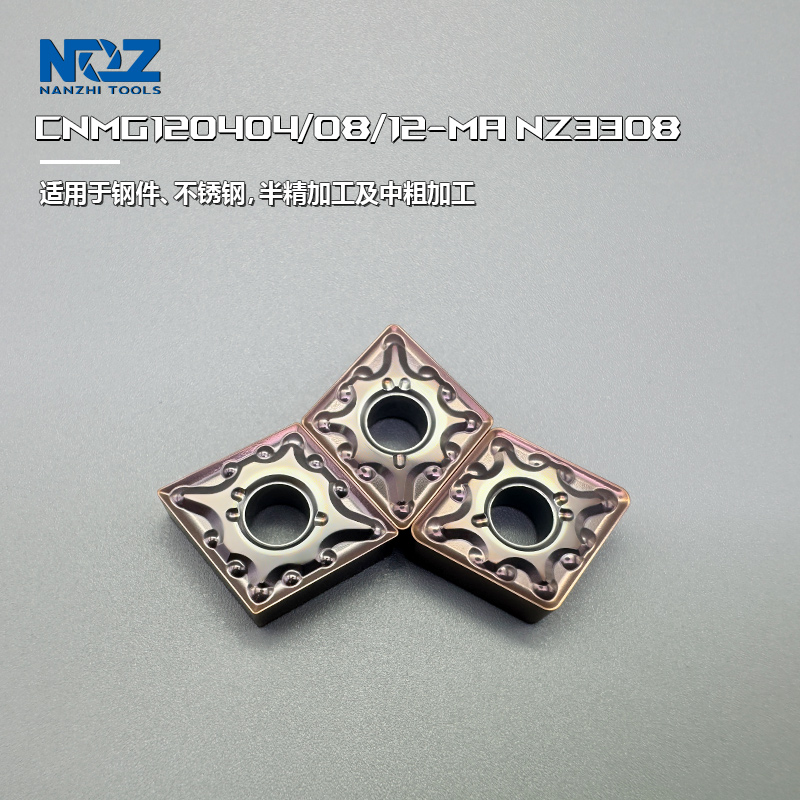

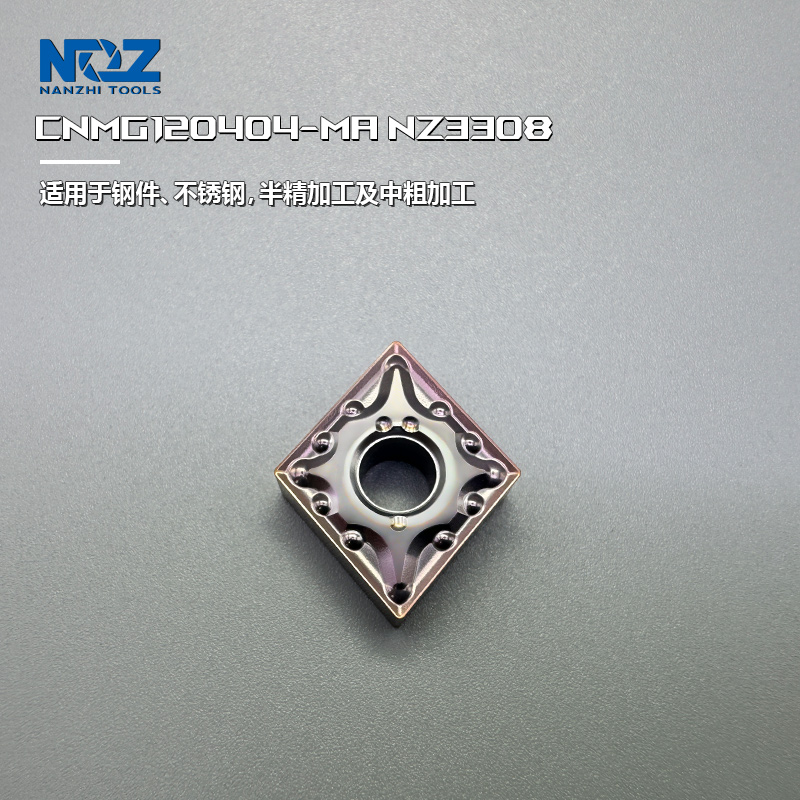

| CNMG120404/08/12-MA |  |

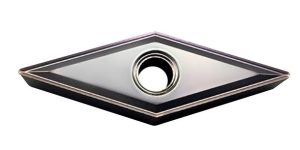

VCMT110304-MA VCMT160404/08-MA |
 |

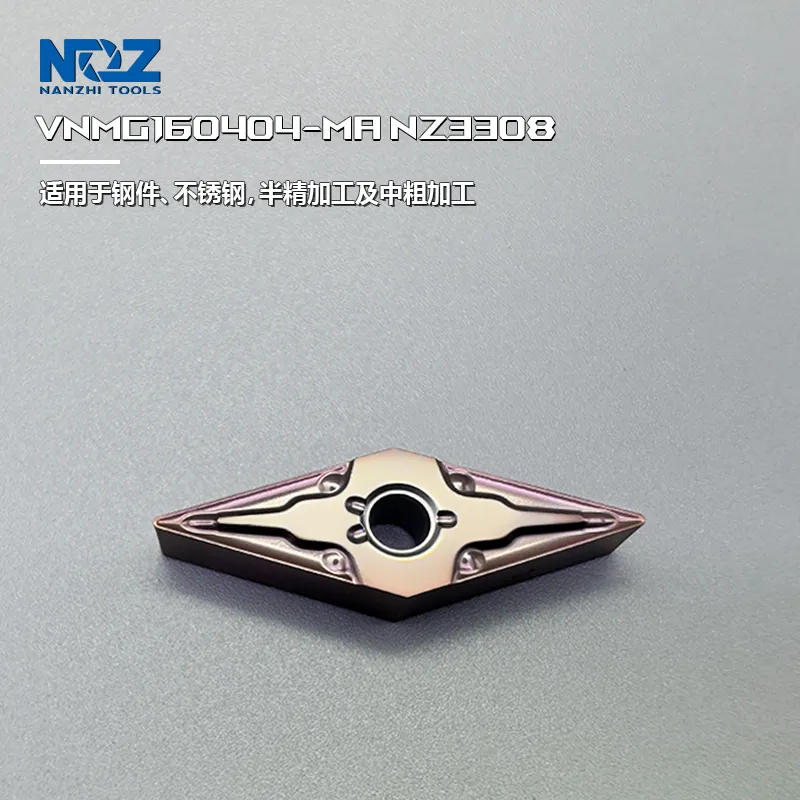

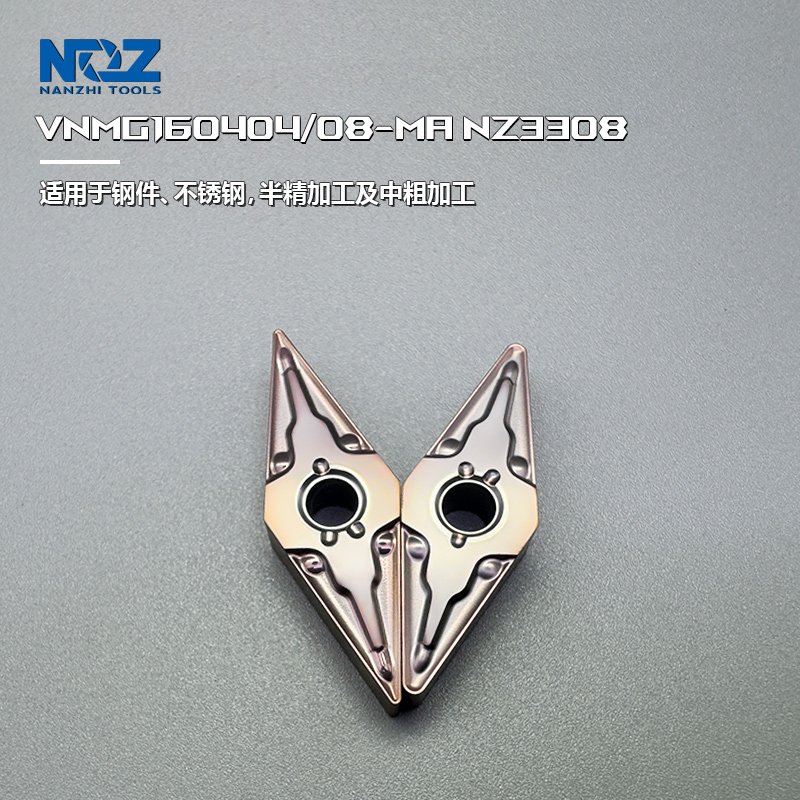

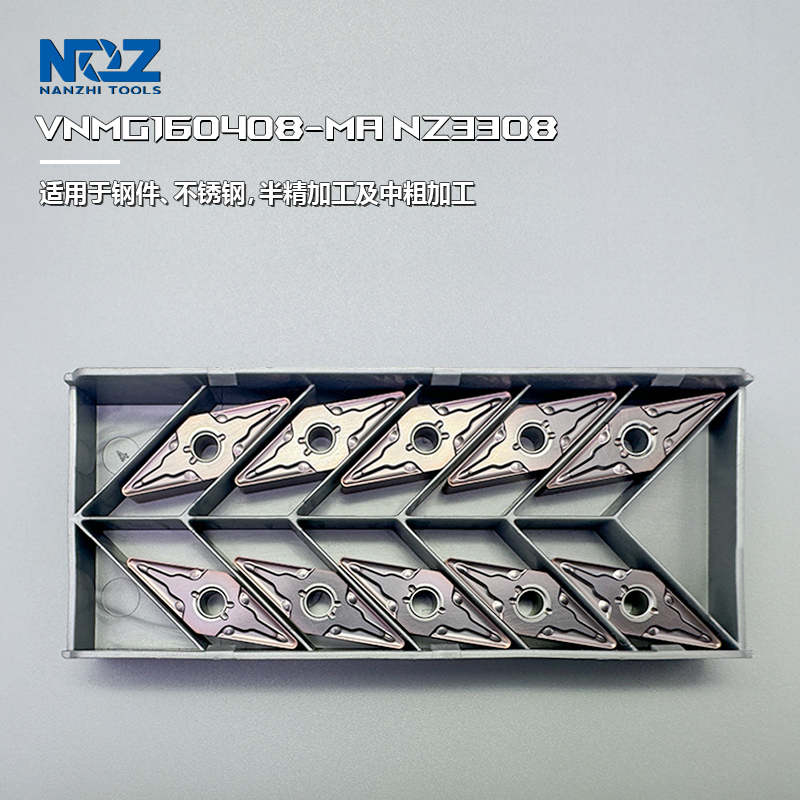

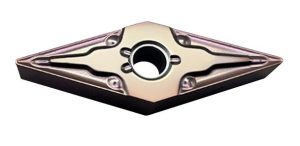

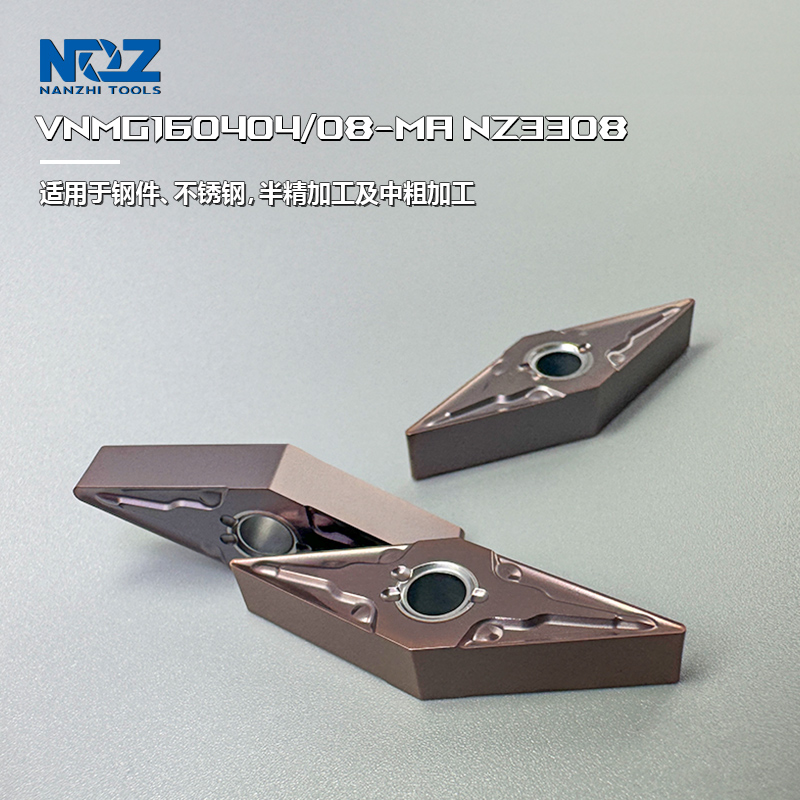

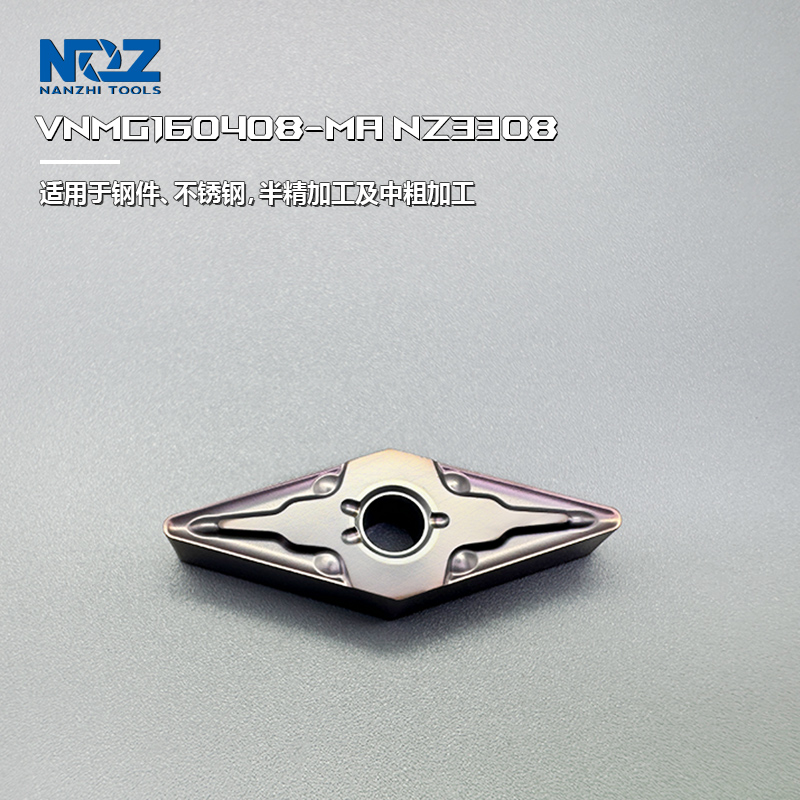

| VNMG160404/08-MA |  |

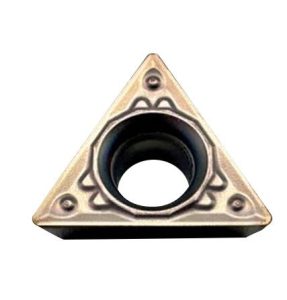

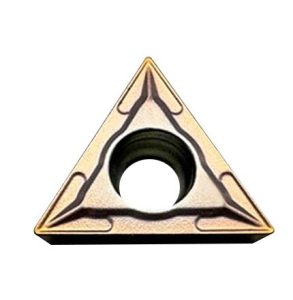

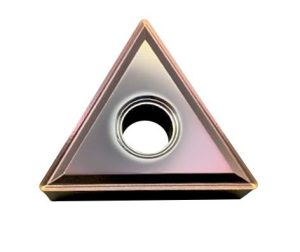

TCMT090204-MA TCMT110202/04/08-MA TCMT16T304/08-MA |
 |

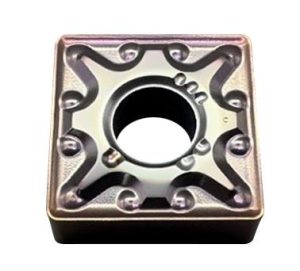

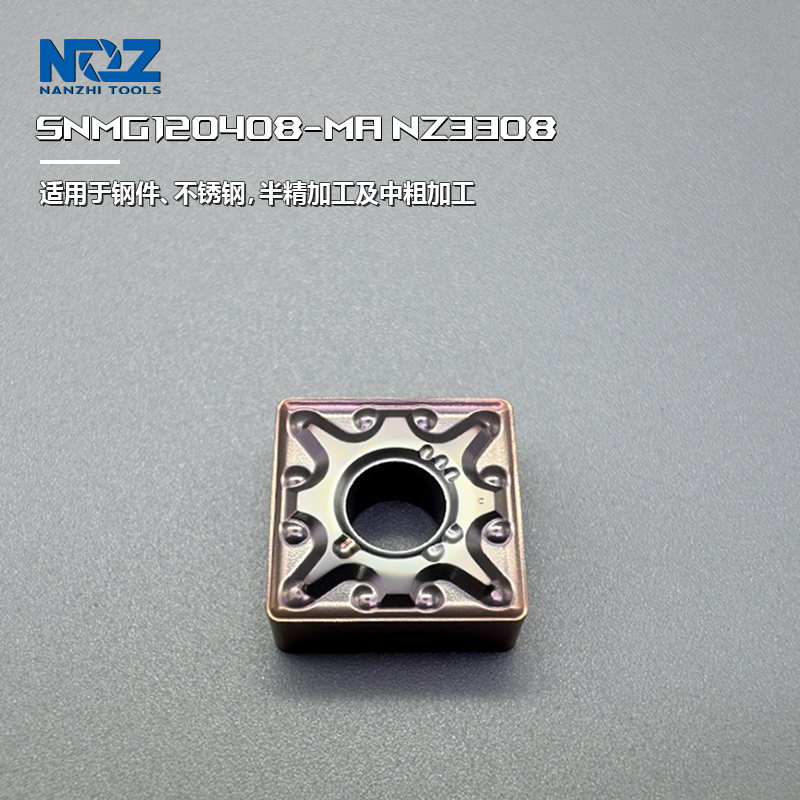

| SNMG120408/12-MA |  |
SCMT09T304/08-MA |  |

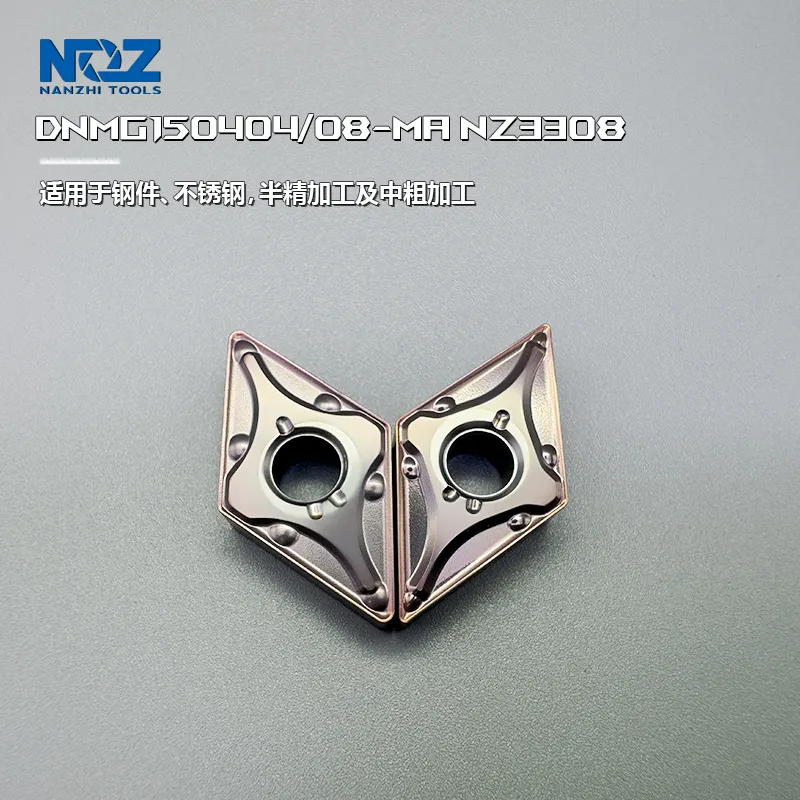

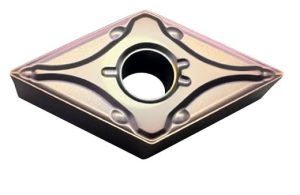

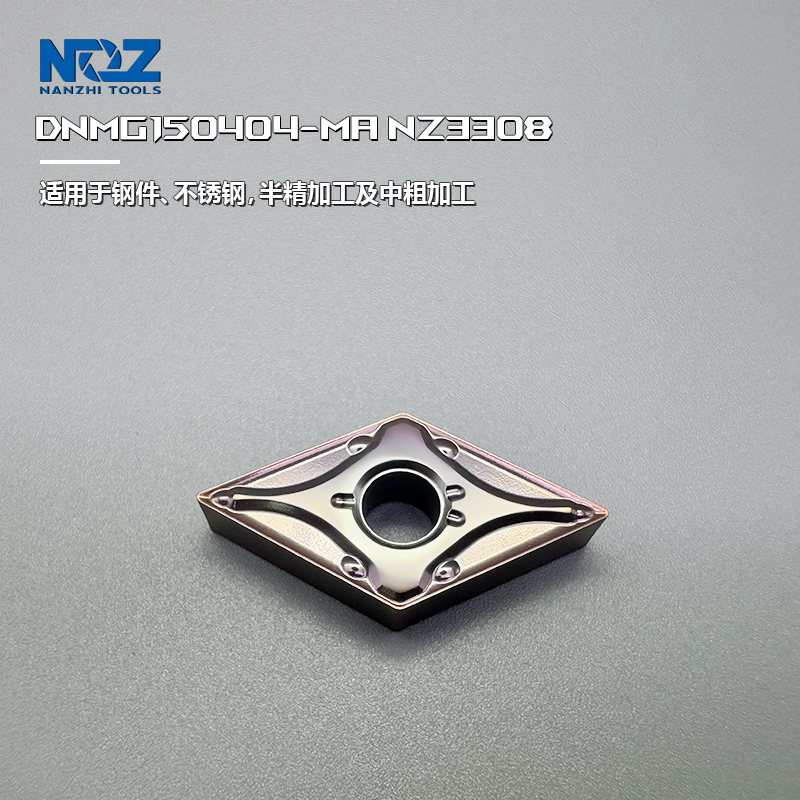

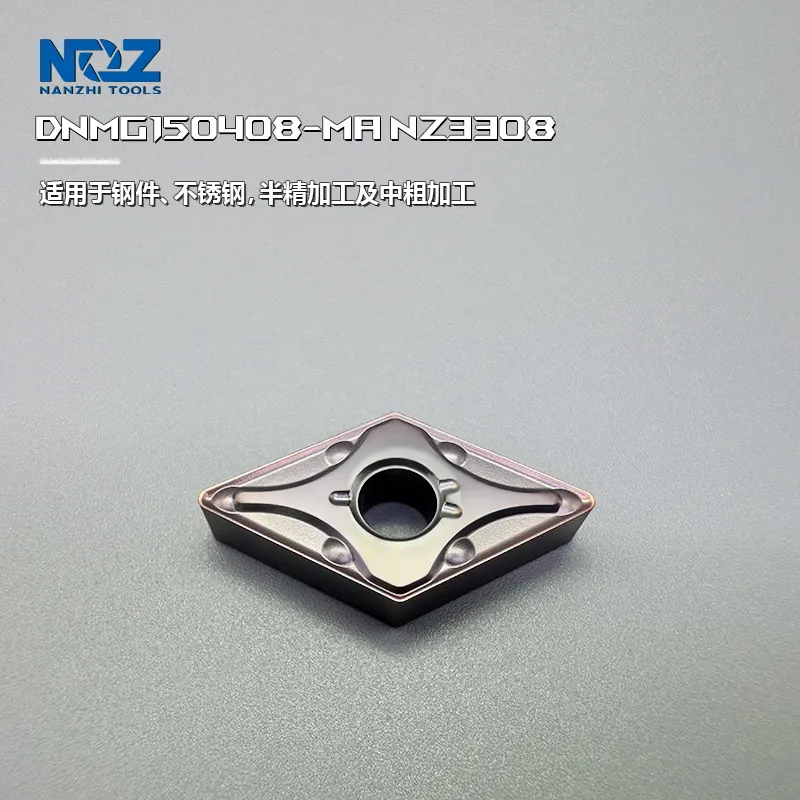

| DNMG150404/08-MA |  |
DCMT070204-MV DCMT11T302/04/08-MV |
 |

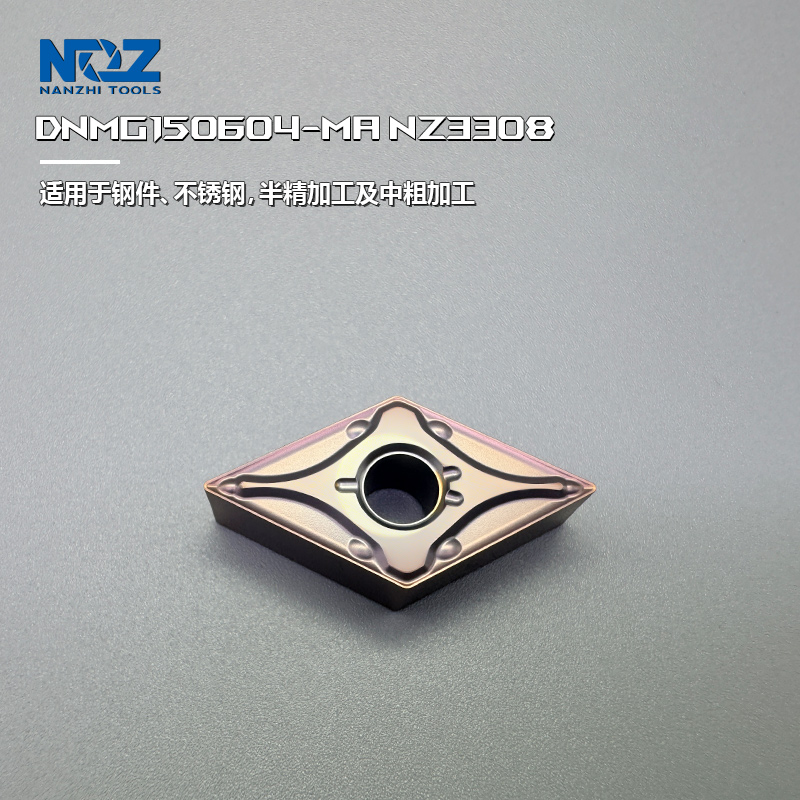

| DNMG150604/08-MA |  |

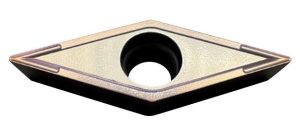

VBMT160404/08-MV |  |
| TNMG160404/08-MS |  |

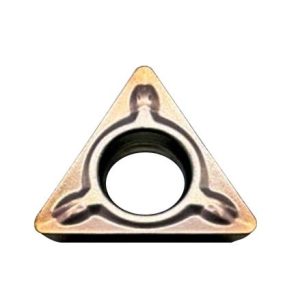

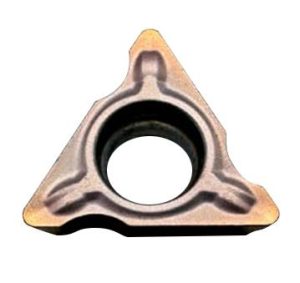

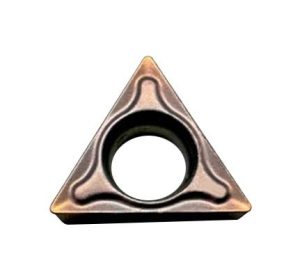

TBMT060102/04-DP |  |

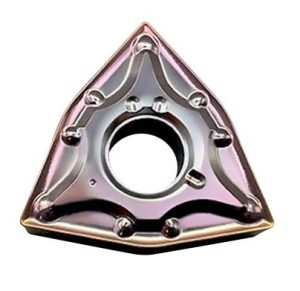

| WNMG080404/08-MS |  |

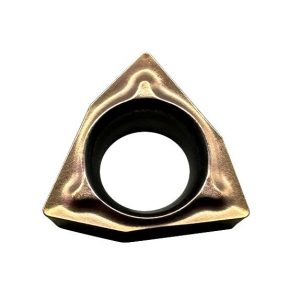

WBMT060102/04-DP |  |

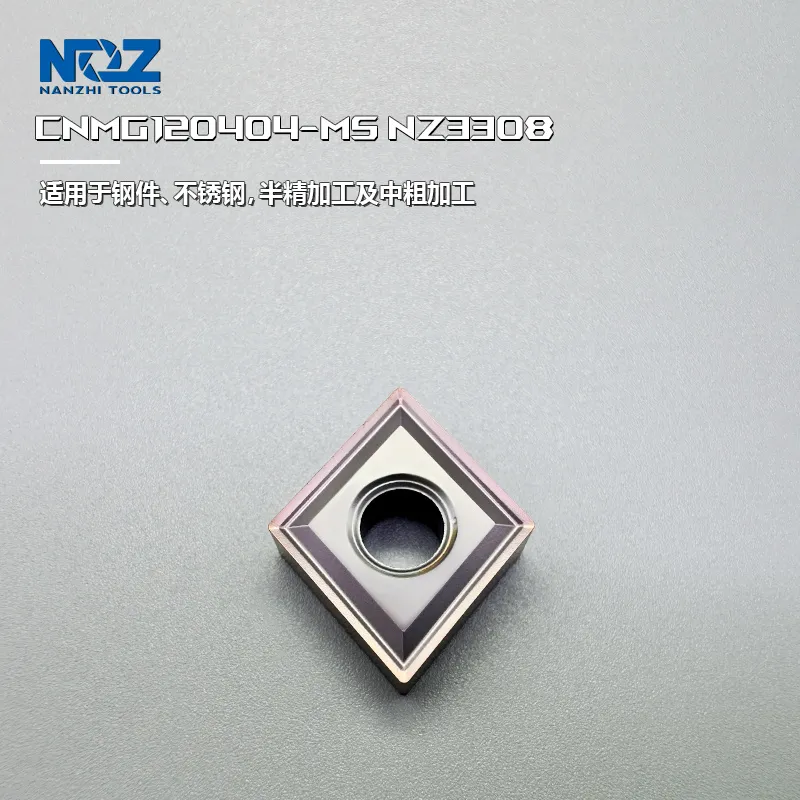

| CNMG120404/08-MS |  |
TPMT110304/08-HQ |  |

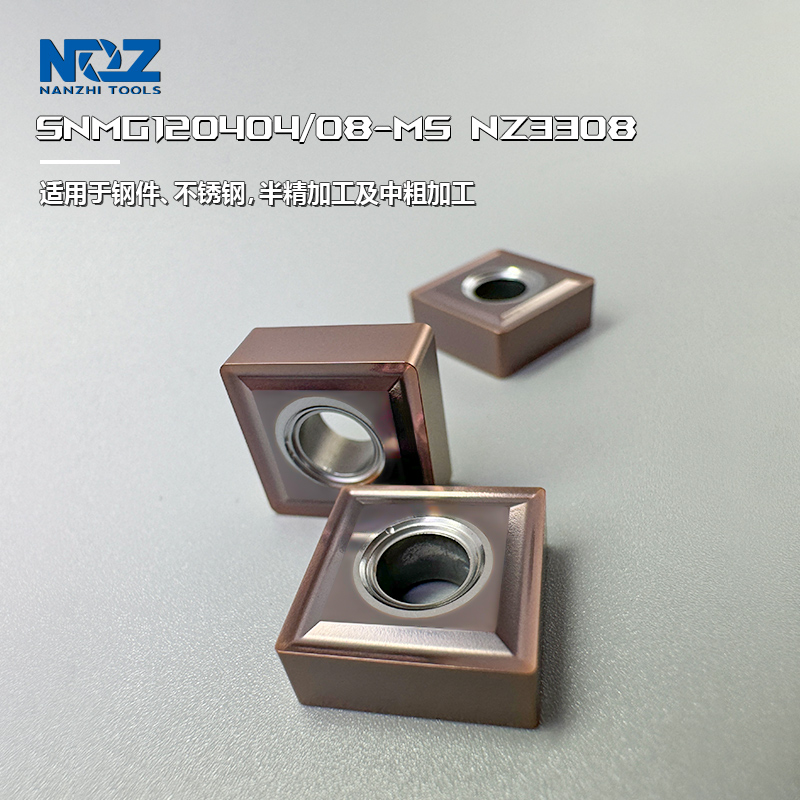

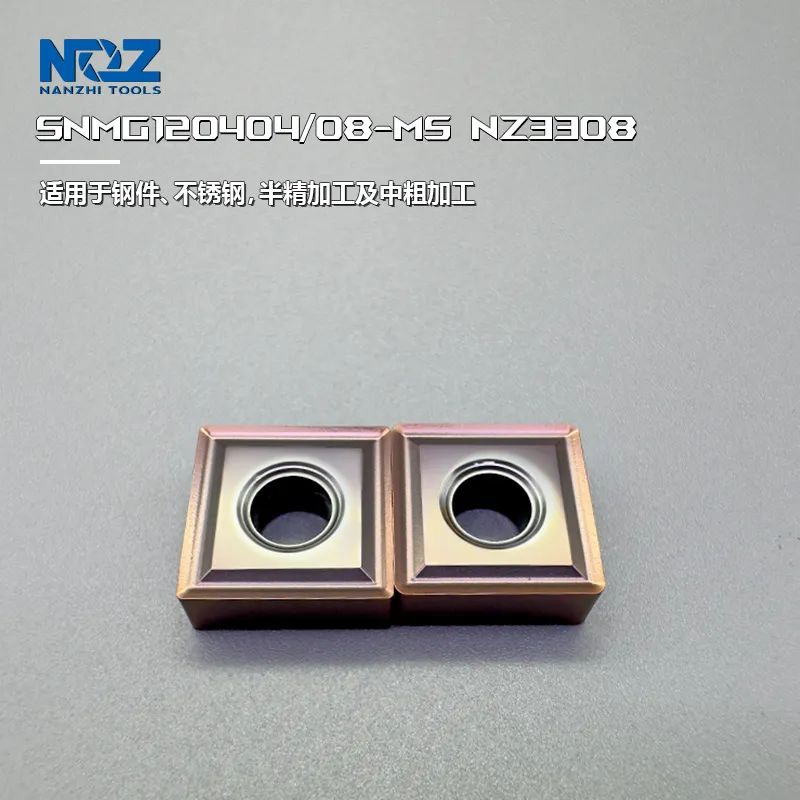

| SNMG120404/08-MS |  |
TPMT080204-SU |  |
| VNMG160404/08-MS |  |
TPMT080204/R1.5 |  |
Get Free Quote of NZ3308 General-Purpose Insert Series
NZ3308 External Turning Insert Application Areas
- Carbon Steels: Ck45, S50C, AISI 1045
- Austenitic Stainless: 304, 316 (feed ≤ 0.35 mm/rev)

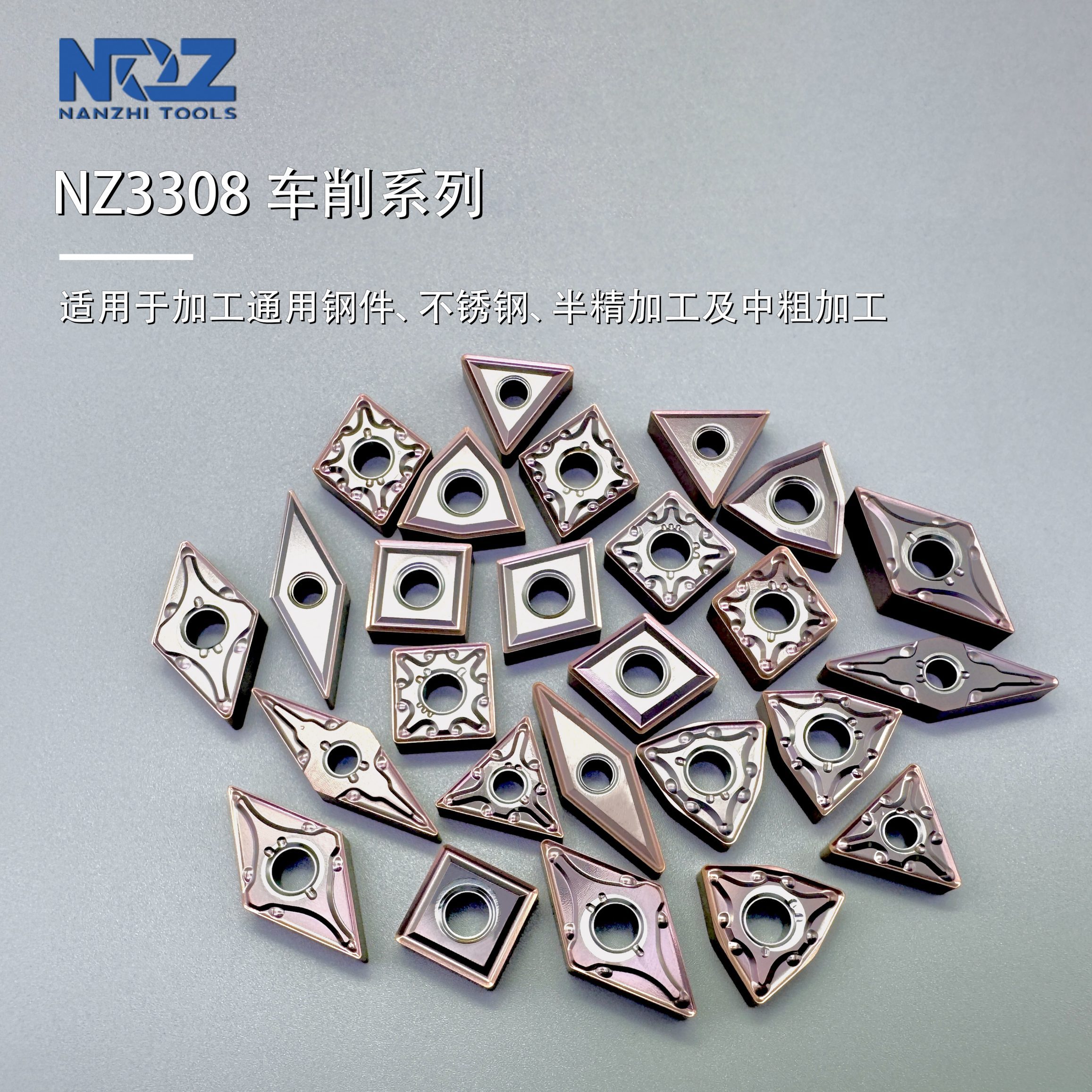

NZ3308 AlTiSiN Coated Insert External Turning Carbon Stainless Steel Detail Display
